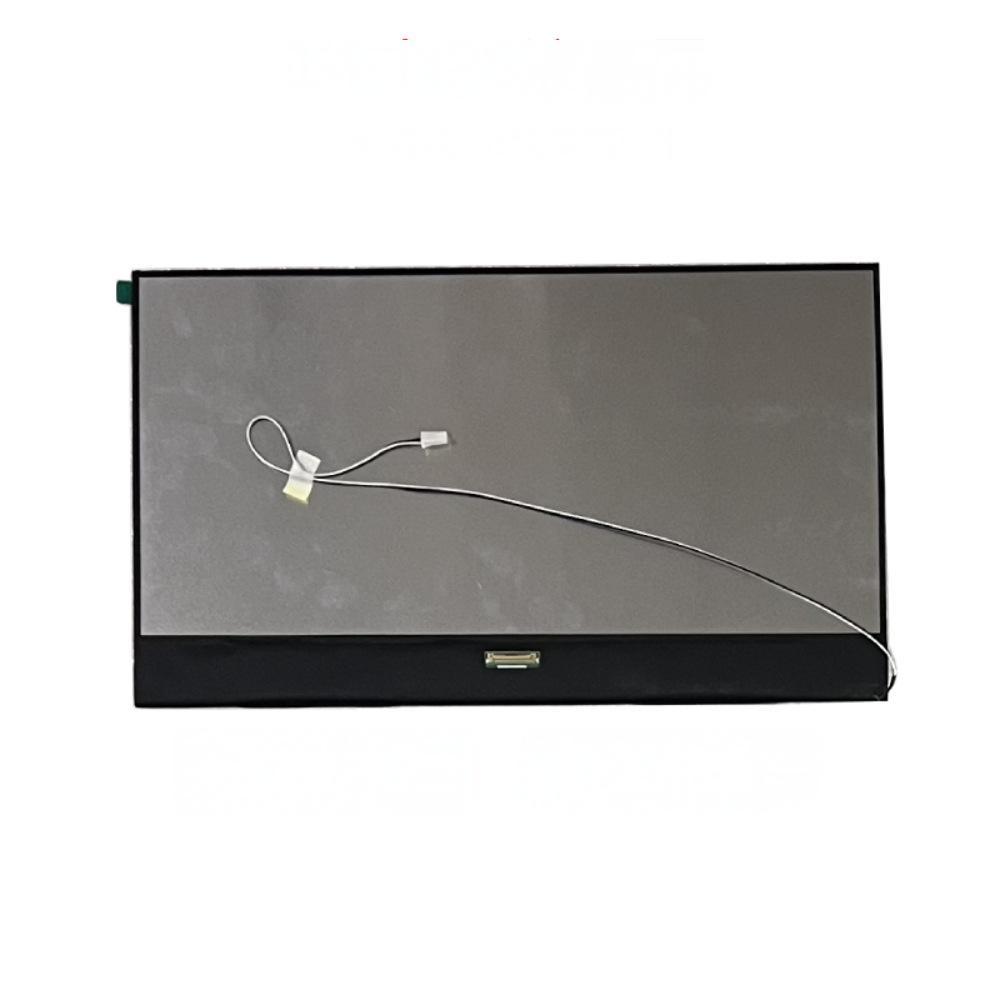

14-inch 1920*1080 eDP Interface TFT LCD Display with 800cd/m² Brightness for Industrial Control

1. Module Name: 14‑inch 1920*1080 eDP Interface TFT Color LCD Module
2. Model:
3. Size: 14‑inch
4. With Touch: No
5. Touch Type:
6. Display Mode: TFT
7. Display Colors: 16.7M
8. Resolution: 1920*1080
9. Pixel Pitch: 0.29398(H)*0.29398(V)
10. Viewing Angle: Full‑viewing Angle
11. Display Type: Transmissive, Normally Black
12. Outline Dimension: 317.52*186.73*4.8mm
13. Viewable Area:
14. Dot Matrix Area: 308.16*173.34mm
15. Brightness: 800cd/m²
16. Contrast Ratio: 1200
17. Interface Type: eDP Interface
18. Number of Pins: 30
19. Pin Pitch: 0.5mm
20. Connection Type: Adaptor Plug‑in Type
21. Backlight Color & Type: White LED Backlight
22. Service Life: 50000h
23. Operating Voltage: DC 3.3V
24. Operating Temperature: -20 -- 70°C
25. Storage Temperature: -30 -- 80°C
26. Product Certification: RoHS
27. Quality System Certification: ISO9001:2008；ISO/TS16949:2009; ISO13485:2003
